Material-Handling Robots Palletizing Robot Arm For Programmable Automation
Product description
This product is an organic combination of machine and computer program. It provides higher production efficiency for modern production.
It designed with payload 1kg, arm span 540mm, repeat positioning accuracy 0.05mm, no control cabinet.
The robot is focus on handling small parts in auto fields and 3C areas.
And it also can be easily integrated with camera, AI and cloud service to realize more applications. such as vision guided pick and place, flexible feeding system, handle complex parts.
Characteristics
1. Simple structure and few parts.
Therefore, the failure rate is low, reliable performance, simple maintenance.
2. Small footprint.
It can be used effectively in narrow space.
4. Low energy consumption.
The power is about 400W, which greatly reduces the operating cost.
5. wireless plate control, operation is very simple.
6. Just grasp the starting point and location, teaching method is simple and easy to understand.
Robot parameter
| Model | HK5404 |
| Maximum working radius | 540mm |
| Number of axis | 4 Axis |
| Installation | Floor / desktop |
| N.W/ GW | 13kg/20kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Maximum Load | 1kg |
| Power Consume | 0.4KVA |
| Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) |
| Voltage rating | 220V |
| External communication | WIFI/Ethernet |
| Application | Picking placing and sorting |
| Safety standard | ISO 9001-2015 |
| Control software | Hulkbot Studio |
| Drive System | Steper motor |
| Working condition | -10°C~60°C |
| I/O | Input 5/Output 5 |
Working rang of each axis
| Axis | Working Range | Max Speed |
| Axis 1 | ±160° | 360°/s |
| Axis 2 | -42°~85° | 360°/s |
| Axis 3 | -20°~100° | 360°/s |
| Axis 4 | ±165° | 500°/s |

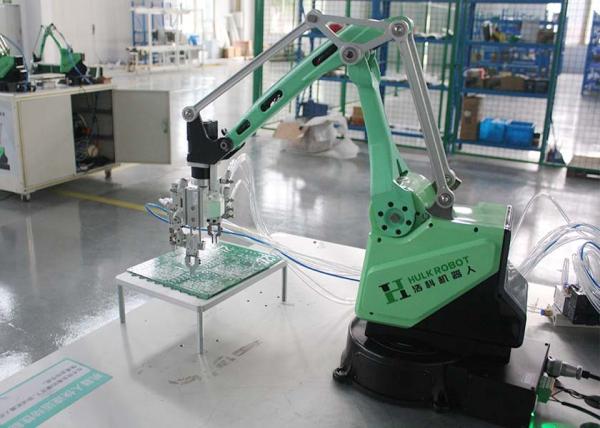

Detailed images
